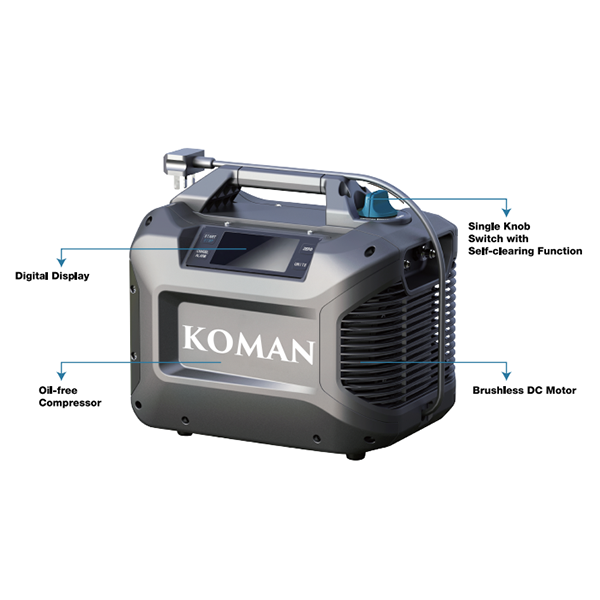

Digital Display Refrigerant Recovery Machine KM-520D Digtal Display, Oilless Compressor

$1,599.99
People are viewing this right now
Add to WishlistCompare
sold in last hours

amazon paymentsamerican expressapple paymasterpaypalshopify paysofortvisa
Ask a Question
SKU: 22
Availability: In Stock Pre order Out of stock
Categories: Feature Products HVAC EQUIPMENT
Description

  • Brushless DC Motor
    Safe, Sparkless Design
    Light Weight, Easy to Carry

  • Double Cylinder Design
    Quick Recovery
    Compact Structure

  • Digital Display
    Easy and accurate reading of pressure values
    Backlight for night use

  • Oilless Compressor
    Suitable for R32, R600 and all other refrigerants

  • Built-in Pressure Sensor
    Accurate measurement of pressure values
    Overpressure protection (38kg)

  • Purge
    Prevent Mixing of Different Refrigerants

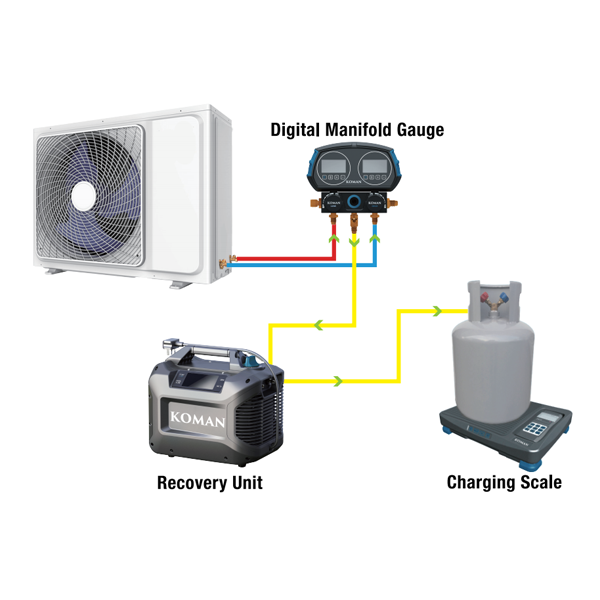

REFRIGERANT RECOVERY SCHEMATIC DIAGRAM

Item No. KM-520D
Suitable refrigerant gas Ⅲ series: R12, R134a, R401C, R406A, R500, 1234YF
Ⅳ Series: R22, R410A, R407C, R408A, R507D, R408A, R409A, R411A, R414B, R417A, R422B, R502, R509
V Series: R402A, R404A, R407A, R407B, R410A, R507, R32
Cylinder quantity 2 cylinder
Power 220V~240V, 50/60Hz
Motor 750W(1HP)
Speed of revolution 2500 RPM
Electric current 5.0A
Compressor No oil lubricate, Forced 2 piston, Piston type
High pressure protection 38.5bar / 3850kPa (558psi)
Operating temperature 0℃ ~ 40℃ / 32℉ ~ 104℉
Dimensions 375 × 250 × 320 mm
Net weight 10 kg
Refrigerant gas R134a / R22 / R410A
Liquid 2.40 kg/min / 3.50 kg/min / 3.60 kg/min
Push–pull mode 7.50 kg/min / 8.50 kg/min / 9.50 kg/min
